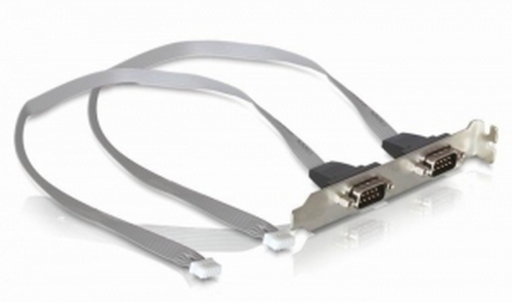

This Delock slot bracket can be installed into a free slot of your PC and enables you to lead out two internal COM ports in order to connect 2 external serial devices. This slot bracket is compatible to MSI and miscellaneous VIA motherboards, which have an internal comport pin header with 2.0 mm pitch. The standard pin header pitch is 2.54 mm and not compatible to this product.

Connections:- 2 x COM 2.0 mm internal

--------------------------- 2 x serial DB9 external

Slot bracket for installation into PCI slot

For MSI / misc. VIA and other mainboards with 2.0 mm COM port pin header

Cable length: 30cm

PC with a free PCI slot

Two free COM ports internal with 2.0 mm pitch

Slot bracket 2x COM port

Package

Delock poly bag
