  SCHEDA PRODOTTO

PartNumber: PAB-X50V9U302 |
|
Shuttle AIO X50V9U3 Intel Core i3-1315U (fanless) |
|
(Carta di Credito Web ) |
721,20 €
|
 |
| 15.6" 1366x768 Touch, 2xDDR4, m.2, SATA, 1xLan, Black |
|
|
|
| |
|
Pagamento e
Prezzo si cambiano nel Carrello, inserito il primo articolo. |
|
| |
|
|
|
|
| Marchio:Shuttle |
|
|
|
|
| Codice:361814.01 |
|
|
|
|
| PartNumber:PAB-X50V9U302 |
|
|
|
|
| EAN:887993006215 | |
|
|
|
|
 Disponibile c/o Vendor
|
|
|
|
|
| Notifica Disponibilità |
|
|
|
|
| |
|
|
|
|
| |
|
|
|
|
| |
|
|
|
|
| |
|
|
|
|
 Altri articoli del Produttore: Shuttle |
|
|
|
| Altri articoli nelle Categorie:/ Hardware / Sistemi Desktop / AiO |
|
|
|
|
|
| . |
|

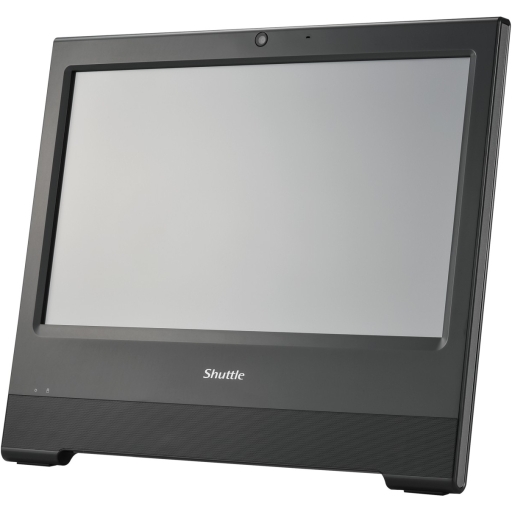

XPC all-in-one X50V9U3
15.6" All-in-One PC for POS, POI, Kiosk Applications
The Shuttle XPC all-in-one X50V9U3 is the latest addition to the X50 Series and is powered by a Gen12/13 Intel ULV processor. The modern processor architecture helps improve on power consumption and computing power. The existing WLAN function can optionally be supplemented with a 4G/5G function with up to 4 antennas. Thanks to its passive heatpipe cooling, the system is virtually noiseless, maintenance-free and approved for 24/7 nonstop operation. Particularly suitable for vertical applications is the arrangement of connectors at the bottom and the IP54 compliant front panel which is dust-protected and protected from splashing of water.
Fanless and silent
Passive heatpipe cooling, no fan noise at all
Perfect to be used in noise-sensitive environments
Fanless, dust-free and thus virtually maintenance-free
24/7 nonstop operation
This Dev. is approved for 24/7 permanent operation.
Requirements:
Free circulation of air amongst the PC must be guaranteed.
Ventilation holes must be kept clear.
If a hard disk is installed, this must also be approved for permanent operation by its manufacturer.
IP54 protected
The front panel is dust-protected and protected from
splashing of water according to protection class IP54.
Chassis
Colour: black or white
Dimensions: 391 x 327 x 42 mm (W x H x D)
100mm VESA mount capable
Mounting hole for Kensington lock
Weight: 3.5 kg net, 4.2 kg gross
Operating system
This system comes without operating system.
It is compatible with:
Windows 10/11 64-bit
Linux 64-bit
Touchscreen
Touchscreen function supports fingertip input
Resistive 5-wire single-touch technology
Stylus for the built-in touchscreen
39.6cm display (15.6")
39.6 cm / 15.6" LC-display, ratio: 16:9 wide-screen panel
Resolution: 1366 x 768 = 1.05 Megapixel
Backlight unit: High power LED, Luminance: 220 cd/sqm
Glass thickness: 3.2 mm
Processor
Model: Intel Core i3-1315U
Code name: Raptor Lake-U (13th generation Intel Core)
Performance-cores (P-Cores): 2 cores (4 threads), Basic/Turbo clock: 1.2-4.5 GHz
Efficient-cores (E-Cores): 4 cores (4 threads), Basic/Turbo clock: 0.9-3.3 GHz
Smart-Cache (L3): 10 MB
Base Power (PL1 TDP): max. 15 W
Maximum Tjunction Temperature: 100 °C
System-on-a-chip architecture (SoC) with integrated memory and graphics controller
BGA1700 package directly soldered onto the mainboard
Lithography: Intel 7 process (10 nm Enhanced SuperFin)
Integrated Graphics
Intel UHD Graphics
GPU clock frequency: max. 1250 MHz
Execution Units (EUs): 64
Up to three displays simultaneously
Two video ports Sup. two additional independent screens:
1) HDMI 2.0b digital audio/video port supports up to 3840 x 2160 pixels resolution at 60 Hz refresh rate (2160p60)
2) VGA / D-Sub analog video port supports 1920 x 1080 pixels resolution at 60 Hz refresh rate (1080p60)
Special conditions for operation in Multi-Monitor mode:
1) Clone mode: all displays show the same content at 1366x768 resolution
2) Extended mode: all displays show different content
BIOS
AMI BIOS in 32 MByte EEPROM with SPI interface
Supports Power fail resume / always on
Supports Wake-on-LAN (WOL) from S3, S4, S5 ACPI states
Supports HW monitoring and Watchdog functionality
Supports Firmware TPM v2.0 functionality
Memory
2x SO-DIMM slot with 262 pins
Supports DDR5-5200 (PC5-41600) SDRAM at 1.1 V
Supports memory modules with higher frequency rating
Supports Dual Channel mode
Supports a maximum of 32 GB per DIMM,
maximum total size: 64 GB
Supports two unbuffered DIMM modules (no ECC or registered)
Two thermal pads for the RAM modules are included
Hard disk drive / SSD
Supports one SATA hard disk or one SATA SSD drive in 6.35 cm / 2.5" format
The SATA 3.0 interface supports up to 600MB/s data transfer speed (6 Gbit/s)
Supports one drive with up to 9.5 mm in height
SATA data/power cable pre-installed
Two M.2-2280 Slots for SSD cards
This product features two M.2-2280 Key-M slots
it supports M.2 cards with a width of 22 mm and a length of 80 mm (type 2280)
one M.2 SSD card with PCIe/NVMe interface is supported
the second M.2 SSD card must have SATA interface
the second slot can also be used for the optional WWN04 kit to Sup. a 4G/5G wireless network card
The following configurations are supported:
M.2 Slot
Inferfaces
Config 1 Config 2 Config 3
Slot 1
CN6, above
PCIe Gen4 x4 and
SATA 3.0
M.2 SSD card
(SATA) M.2 SSD card
(PCIe/NVMe) M.2 SSD card
(SATA)
Slot 2
CN5, below PCIe Gen4 x4 and
USB 3.2 Gen2 *) M.2 SSD card
(PCIe/NVMe) optional
WWN04 kit optional
WWN04 kit
*) the USB 3.2 interface can only be used with the Shuttle Accessory WWN04
Two thermal pads for the M.2 SSDs are included (size: 70 x 20 x 5.5 mm).
Webcam
Integrated Full HD webcam (1920 x 1080 pixels)
Microphone and speakers
Front panel with integrated Electret Condenser Microphone and
2x 2 W speakers
Integrated Audio
Realtek ALC888S (HD-Audio)
Two analog audio connectors (3.5 mm) on the bottom side:
1) Line-out (head-phones)
2) Microphone input
Digital Audio is supported via the HDMI output.
Wired Network
Intel i219 Ethernet Controller
Supports 10 / 100 / 1.000 MBit/s operation
Supports WAKE ON LAN (WOL) from S3, S4 modes
Supports network boot by Preboot eXecution Environment (PXE)
Wireless Network (WLAN)
WLAN controller Card: Realtek RTL8821CE
WLAN antennas: two internal antennas
Supports WiFi IEEE 802.11b/g/n/ac on the 2.4 / 5 GHz band, 1T1R
Supports 20 / 40 / 80 MHz channel bandwidth
Security: supports WPA(-PSK), WPA2(-PSK), WEP 64/128 bit, IEEE 802.11x, IEEE 802.11i
Supports Bluetooth 4.2 on the 2.4 GHz band
The M.2-2230 Key A+E slot supports PCIe Gen3 x1, USB 2.0 und CNVi
Front LEDs
Power LED (blue)
HDD/SSD LED (orange)
Connectors left side
Power button
2x USB 3.2 Gen 1 (max. 5 Gbps, blue)
Hole with hidden power button (onboard micro switch)
Hole with hidden Clear CMOS button (onboard micro switch)
Connectors bottom side
HDMI 2.0b (supports digital video and digital audio)
VGA connector (D-Sub 15 pol., analog video)
2x USB 3.2 Gen 2 (max. 10 Gbps, red)
2x USB 3.2 Gen 1 (max. 5 Gbps, blue)
Gigabit Network (LAN, RJ45, Intel i219)
Audio Line-out / head-phones (3.5 mm jack)
Microphone input (3.5 mm jack)
DC input for external power adapter (5.5 / 2.5 mm)
Optional: 2x COM/serial D-Sub (1x RS232, 1x RS232/422/485)
Connectors onboard
Internal USB 2.0 type A connector for a USB stick
Serial ATA (6 Gbps) data/power connector
2x serial interfaces for optional COM ports (each 2x5-pin, 2 mm pitch)
Other available connectors are occupied by integrated components.
Opening holes for four optional antennas
The chassis features four perforated 6.5 mm holes
for optional antennas mounted with an (RP-)SMA connector
for wireless network such as WLAN or WWAN (e.g. 4G/5G)
(see section "Optional Accessories")
Power adapter
External 90 W power adapter (fanless)
Input: 100~240 V AC, 50/60 Hz, max. 1.6 A
Output: 19 V DC, max. 4.74 A, max. 90 W
DC cable length: ca. 170 cm
AC cable length: ca. 170 cm (3-pin Micky MM C6 and Schuko earthed safety plug)
DC Input connector
DC Input Connector: 5.5 / 2.5 mm (outer/inner diameter)
The DC-input of the computer supports an external
power source with either 12V±5% or 19V±5%.
Included Accessories:
Multilingual Quick Guide
Driver DVD for Windows
External Power Adapter (90W / 19V)
AC Power cord with protective-earth contacts
2x Thermal Pads for SSD M.2 cards: 70 x 20 x 5.25 mm
2x Thermal Pads for RAM modules: 50 x 15 x 2.25 mm and 70 x 20 x 4 mm
3x M3x4 silver screws for mounting M.2 SSD cards
4x M3x4 black screws for mounting a 2.5" SATA drive
Optional Accessories:
1) WLAN Kit WLN-M1 (Intel AX200 card + two external antennas)
An 802.11ac (1T1R) WLAN function with internal antennas is already pre-installed and can be upgraded to 802.11ax (2T2R) with two external antennas with this kit.
2) 4G/5G Kit WWN04
This kit includes an adapter board for the lower M.2-2280 slot (CN5) and four external antennas.
For data transmission in the mobile network, the these additional components are required
a 4G/LTE card in M.2-3042 format or a 5G card in M.2-3052 format
an activated nano SIM card
3) COM port adapter 2x PCP11
provides two serial COM ports (1x RS232, 1x RS232/422/485) on the bottom side
Environmental criteria
Operating temperature: 0~40 °C
Humidity: 10~90 %, non-condensing
Certification and Compliance
EMI: CE, UKCA, FCC, BSMI, RCM, VCCI
Safety: CB (IEC 60950/62368), cTUVus (UL 62368), BSMI
Other compliances: RoHS, ErP Lot3, Energy Star v8.0
Conformity
This Dev. is classed as a technical information equipment (ITE) in class B and is intended for use in living room and office. The CE-mark approves the conformity by the EU directives:
(1) 2014/30/EU relating to electromagnetic compatibility (EMC),
(2) 2014/35/EU relating to Electrical Equipment designed for use within certain voltage limits (LVD),
(3) 2009/125/EC relating to eco design requirements for energy-related products (ErP),
(4) 2014/53/EU Radio Equipment Directive (RED)
|
|
| |
|
