  SCHEDA PRODOTTO
| . |
|
XPC nano NT10H9
AI-Powered Performance Booster in nano design
The Shuttle nano Barebone NT10H Series is designed as a compact, 1-litre nano-style mini-PC with enhanced features and efficiency for multitasking and AI workloads. Equipped with Intel® Core™ Ultra processors with integrated Intel® Arc™ graphics and AI Boost NPU, it effortlessly handles demanding graphics processing. It supports output to four 4K/UHD displays and Offer comprehensive connectivity including dual USB4, dual 2.5G Intel® LAN, and PCIe 4.0 SSD slot. This powerhouse is ideal for gaming, AI inference, image processing, and multimedia content creation tasks, delivering powerful performance at an affordable price point, empowering both everyday tasks and professional projects with outstanding results.
Chassis
Barebone PC with a black plastic chassis
Dimensions: 132 x 143 x 55 mm (WLH) = 1038 ml
The height is 57.8 mm including rubber feet
Weight: 0.8 kg net, 1.7 kg gross
Hole for Kensington Lock
Includes VESA mount for 75x75 and 100x100 mm standard
Operation System
This barebone system comes without operating system.
It is compatible with:
Windows 11, 64-bit
Linux, 64-bit
Windows 10/11 driver download: go.shuttle.eu/NT10H
Processor
Model: Intel® Core™ Ultra 9 Processor 185H
Code name "Meteor Lake-H" (Intel Core Ultra processors Series 1)
System-on-a-chip architecture (SoC) with integrated memory and graphics controller
Lithography: Intel 4 process (7 nm) and TSMC N5/N6
Performance-cores (P-Cores): 6 cores, 12 threads, clock rate: 2.3 5.1 GHz
Efficient-cores (E-Cores): 8 cores, clock rate: 1.8 3.8 GHz
Low Power Efficient-cores: 2 cores, clock rate: 0.7 2.5 GHz
Total Threads: 22
Smart-Cache (L3): 24 MB
Base Power (TDP): 45 W
Configurable Power (cTDP): 35 W, 45 W or 54 W [1]
Neural Processing Unit (NPU): Intel® AI Boost
NPU AI performance: 11.5 TOPS (NPU+CPU+iGPU: 34 TOPS) [2]
Maximum operating temperature: 110 °C
FCBGA2049 package directly soldered onto the mainboard
Cooling System
Heat-pipe cooling system with dual fan concept for optimal airflow:
1) Processor fan 80 mm
2) Chassis fan (bottom) 60 mm
Supports temperature-controlled RPM fan speed [1]
Integrated Graphics supports Quad 4K
Intel® Arc™ graphics engine
Xe-cores: 8
Dynamic graphics clock rate: max. 2.35 GHz
Supports DirectX 12.2, OpenGL 4.6, OpenCL 3.0
This PC supports up to four independent screens
with up to 4K/60Hz (Ultra HD 3840×2160 resolution):
2x HDMI 2.0b
2x USB4 Type-C with DP 1.4 function
UEFI Firmware (BIOS)
AMI UEFI Firmware (BIOS)
Supports resume after power failure
Supports Wake-on-LAN (WOL) and Power on by real time clock (RTC)
H/W TPM Function
HW TPM function: supports DTPM 2.0 with Infineon SLB9670VQ2.0
The TPM function can be deactivated in the BIOS setup.
Memory support
2x SO-DIMM slot with 262 pins
Supports DDR5-5600 (PC5-44800) SDRAM at 1.1 V
Supports Dual Channel mode
Supports a maximum of 48 GB per DIMM,
maximum total size: 96 GB
Supports two unbuffered DIMM modules (no ECC or registered)
M.2-2280 Slot for SSD card
M.2-2280M slot for SSD cards in M.2 form factor
Supports PCIe Gen4 x4 with NVMe (no SATA)
Supports M.2 cards with a width of 22 mm and a length of 80 mm
Supports M.2 cards with M key or B+M key
Audio
Realtek ALC269-VC3 Audio Controller
3.5 mm / 4-pole combo audio connector (combines Line-out and Microphone input)
Can be used for headphones/headsets with 3- or 4-pole jack plug [3]
Digital multi-channel audio output: via HDMI and DP (USB-C)
Dual 2.5G LAN
Two RJ45 ports with 2 status LEDs each
Ethernet Controller: Intel i226V
Supports 10 / 100 / 1.000 / 2.500 MBit/s operation (max. 2.5 Gbps)
Supports WAKE ON LAN (WOL)
Supports network boot by Preboot eXecution Environment (PXE)
M.2-2230E slot for WLAN cards
M.2-2230E slot supports WLAN expansion cards
Interfaces: PCI-Express X1 and USB 2.0
Supports M.2 cards with a width of 22 mm and a length of 30 mm (type 2230)
This PC comes with two pre-installed internal WLAN antennas with I-PEX4/MHF-IV connectors
SD Card Reader (left side)
SD card reader supports SD cards in the size of 24 mm × 32 mm
Supports Micro SD cards with appropriate adapter (not included)

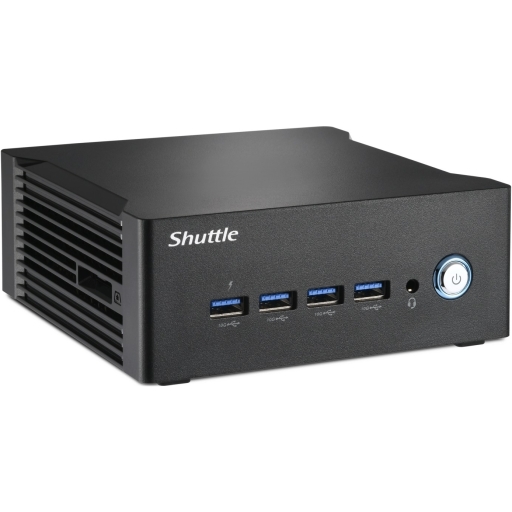

Front Panel connectors
1x Power button with Power LED (blue)
4x USB 3.2 Gen 2 Type-A (max. 10 Gbps)
Note: the left USB port supports USB power in S5/Off mode (max. 0.9 A)
1x Audio Combo port (3.5 mm jack plug, 4-pole) [3]

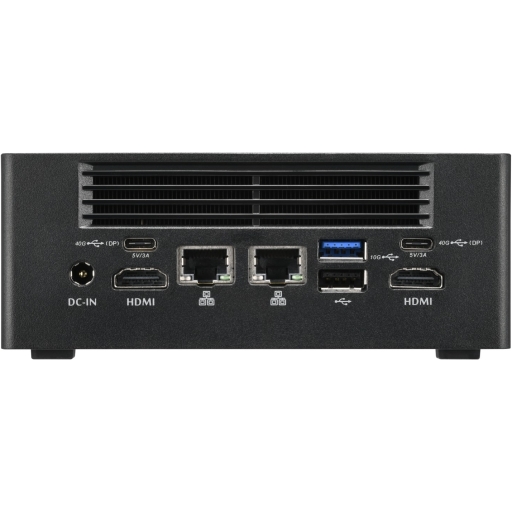

Back Panel connectors
2x HDMI 2.0
2x USB4 Type-C (max. 40 Gbps) with DP function (DP 1.4)
and Power Delivery (PD max. 5V / 3A)
1x USB 3.2 Gen 2 Type A (max. 10 GBit/s)
1x USB 2.0
2x 2.5G Ethernet LAN (RJ45, Intel i226V)
1x DC-Eingang für externes Netzteil (5,5 / 2,5 mm)
Power Adapter
External 120 W power adapter (fanless)
Dimensions: 64.5 mm x 22.5 mm x 98 mm (WHD)
Input: 100~240 V AC, 50-60 Hz, max. 1.4 A
Output: 19.0 V DC, max. 6.32 A, max. 120 W
DC cable ca. 150 cm with coaxial connector: 5.5 / 2.5 mm (outer/inner diameter)
The DC-input of the computer supports 19V ± 5%.
AC cable, ca. 170 cm, 3-pin Micky MM C6 and Schuko earthed safety plug
Supplied Accessories
Multi-language Quick Installation Guide
VESA mount with screws (supports 75x75 and 100x100 mm standards)
Heat sink with two thermal pads for the M.2 SSD card
Power adapter 120 W with AC power cord (with earthing contact)
A DVD driver disk is not supplied.
Windows 11 driver download: go.shuttle.eu/NT10H
Environmental Spec
Operating temperature range: 0~40 °C
Relative humidity range: 10~90% (non-condensing)
Conformity/Certifications
EMI: CE, FCC, BSMI
Safety: CB IEC62368, cTUVus (UL 62368), BSMI
Other: RoHS, Energy Star, ErP
This Dev. is classed as a technical information equipment (ITE) in class B and is intended for use in living room and office. The CE-mark approves the conformity by the EU directives:
(1) 2004/108/EC relating to electromagnetic compatibility (EMC),
(2) 2006/95/EC relating to Electrical Equipment designed for use within certain voltage limits (LVD),
(3) 2009/125/EC relating to ecodesign requirements for energy-related products (ErP)
Footnotes:
[1] Configurable fan speed and power consumption of the processor
In the BIOS setup, there is a “Fan Mode” option on the “Advanced” page to configure the fan control, which also has an effect on the maximum power consumption of the processor. The default setting “Normal Mode” offers a good balance between performance, temperature and fan speed. The "Fan Mode" setting also defines the upper limits for the average power dissipation (cTDP) and short-term power dissipation in turbo mode (Turbo TDP):
"Fan Mode" Setting CPU Performance Fan Speed cTDP Turbo TDP
Performance Mode maximum high 54 W 70 W
Normal Mode high medium 45 W 54 W
Silent Mode medium low 35 W 50 W
[2] AI performance
Processors with the Sup. of artificial intelligence (AI) and machine learning (ML) can process many calculations, especially audio, image and video processing, much faster than classic processors. The AI performance is given in the number (trillions) of arithmetic operations per second (TOPS). The processor used in this product integrates the Intel® AI Boost NPU with 11.5 TOPS performance. The Total AI performance (Platform TOPS) is a measure of the aggregate performance of all the processing units in the processor: CPU, NPU and GPU (graphics).
[3] Audio connector
The 3.5 mm audio jack at the front panel of this Dev. supports both: headphones with a 3-pole connector and also headsets (with microphone) with a 4-pole connector. Headsets with separate connectors for headphones and microphone, though, require an appropriate adapter, if also the microphone should be used.
|
|
| |
|
