  SCHEDA PRODOTTO
| . |
|
XPC nano NS03A
0.5-litre fanless PC with Android OS supports Dual Display
The Shuttle XPC nano NS03 series is one of the most affordable models in the Shuttle XPC product range. It not only convinces by its stunning looks and reliable long-term performance alone, it also comes with an integrated Quad-Core ARM processor and pre-installed Android 11 operating system. Two HDMI ports Sup. either two Full HD displays or one 4K display. Featuring 4x USB, Gigabit-LAN, WLAN-ac, M.2 SSD slot and a built-in SD card reader, they easily connect to diverse peripheral devices for different kinds of application. While NS03A is supplied via an included power adapter, NS03E is supplied via the network port (Power-over-Ethernet). The NS03 series is particularly intended for digital signage and Thin Client applications.
Fanless and Silent
Passive cooling, no fan noise at all
Perfect to be used in noise-sensitive environments
Fanless, dust-free and thus virtually maintenance-free
24/7 nonstop operation
Approved for 24/7 permanent operation
Chassis
PC system with a black plastic chassis
Dimensions: 141 x 141 x 29 mm (LWH) = 577 ml
Weight: 0.27 kg net, 0,81 kg gross
Hole for Kensington Lock
Operation System
Android 11 (code name "Red Velvet Cake") pre-installed [4]
Other operating system images are available on request:
Android 11 with root privileges
Debian 10 Linux [6]
Pre-installed Player Software
This player SW plays digital signage content which was previously created and uploaded on a mobile Dev. with the Shuttle DS Creator Duo SW.
Free app: Shuttle DS Creator Duo
Use this free app on your phone or tablet to upload digital signage content such as scrolling text, pictures, videos and website links to your Shuttle XPC nano NS03A/NS03E. Connection happens using WLAN within the local network.
For Android: download from Google Play
For Apple: download from the App Store
For Windows: Download from global.shuttle.com
Special Features
+ Supports either automatic power-on when DC voltage is applied or power-on via power button [5]
+ Supports wake-up and shut-down by time setting
+ Supports screen rotation
+ Supports video output scaler function (zoom in/out)
+ Supports Wake-on-LAN (WOL)
+ Supports Dual Display (2x FullHD or 1x UHD)
+ Supports external USB hard disk and USB Camera
Power Adapter
External 36 W power adapter (fanless)
Input: 100~240 V AC, 50-60 Hz, max. 0.9A, automatics voltage adjustment
Output: 12 V DC, max. 3.0 A, max. 36 W
DC Connector: 5.5 / 2.5mm (outer/inner diameter)
AC Connector: This power adapter is designed to plug directly into an electrical outlet, and includes a set of interchangeable/detachable power plug adapors to accommodate most outlet types: EU (type C), UK (type G), US (type A), AU (type I)
Processor
Rockchip RK3568 Quad-Core Cortex-A55
64-bit SoC with NEON/FPU coprocessor
22nm process technology
Clock speed: 2.0 GHz max.
512kB L3-Cache
Integrated Graphics
Mali G52 2EE graphics processor
Clock speed: up to 800 MHz
Video Decoder: 4KP60 H.264/H.265/VP9
Video Encoder: 1080P60 H.264/H.265
Supports Dual Display [2]
RAM Memory
2 GB DDR4 onboard
(optional 4 GB possible on project requests)
Flash Memory
32 GB eMMC Flash Memory onboard
M.2-2280M SSD slot
M.2-2280 M-key slot
Supports M.2 cards with a length of 80 mm and a width of 22 mm
Supports M.2 SSDs with SATA or PCI-Express interface
The mode (SATA or PCIe) is detected automatically, but can also be forced to SATA or PCIe via jumper setting (CN20).
Audio
Audio chip: Rockchip RK809-5
3.5 mm / 4-pole combo audio connector for head-phones and microphone [1]
Digital audio output via one HDMI connector [2]
Gigabit LAN
LAN chip: Realtek® RTL8211E-VB-CG
Supports 10 / 100 / 1.000 MBit/s operation (Gigabit)
Supports Wake On LAN (WOL)
Power-over-Ethernet (PoE)
NS02A does not Sup. Power over Ethernet (PoE).
For this purpose use NS02E instead.
Wireless Network (WLAN+BT)
Chipset: AMPAK AP6256 (UART interface)
One internal antenna (1T1R) [3]
Supports Wireless LAN IEEE 802.11a/b/g/n/ac at 2,4 and 5 GHz
Supports Bluetooth 5.2
Card Reader
Integrated SD card reader
Supports SD, SDHC and SDXC memory flash cards
Supports booting from SD card for image update

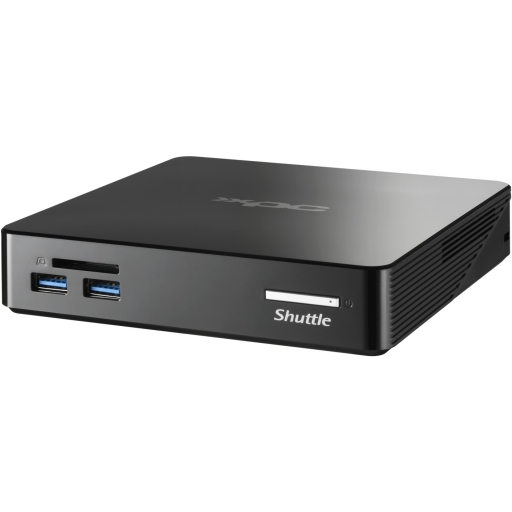

Front Panel connectors
2x USB 3.2 Gen 1 (blue)
SD card reader (supports SD, SDHC, SDXC)
Power button [5]
Power LED (blue)

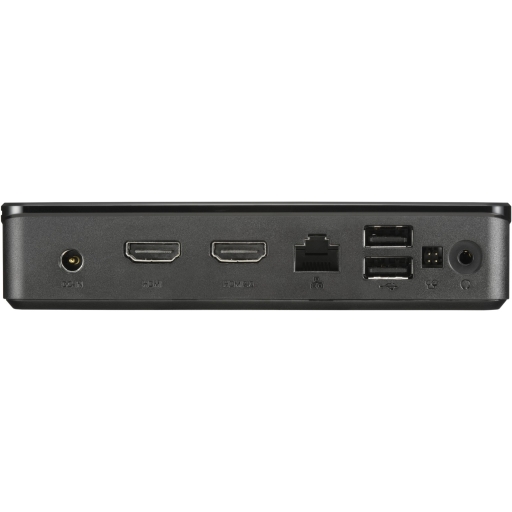

Back Panel connectors
HDMI 2.0 supports 2160p/60Hz [2]
HDMI 1.4 supports 1080p/60Hz [2]
2x USB 2.0
Gigabit LAN (RJ45)
Audio Combo Port for headphones and microphone (3.5 mm jack, 4-pole) [1]
DC-input connector for external power adapter
2-pin connector for external power button (wakeup/suspend mode)
2-pin connector for image flash or android recovery mode
VESA mount
VESA mount set (two parts made of steel, including 6 screws)
Supports 75x75 and 100x100 mm
Supplied accessories
Quick Installation Guide
VESA mount including screws
AC Power Adapter (36W) with interchangeable AC plugs for EU, UK, US, AU
WLAN antenna cable, 10 cm [3]
Four Rubber feet
Environmental Spec
Operating temperature range: 0~40 °C
Relative humidity range: 10~90% (non-condensing)
Conformity/Certifications
EMI/RF: CE, FCC, BSMI, RCM, VCCI
Safety: CB (IEC 60950/62368), cTUVus, BSMI
Other: RoHS, ErP
This Dev. is classed as a technical information equipment (ITE) in class B and is intended for use in living room and office. The CE-mark approves the conformity by the EU directives:
(1) 2014/30/EU relating to electromagnetic compatibility (EMC),
(2) 2014/35/EU relating to Electrical Equipment designed for use within certain voltage limits (LVD),
(3) 2009/125/EC relating to ecodesign requirements for energy-related products (ErP),
(4) 2014/53/EU Radio Equipment Directive (RED)
[1] Audio connector
The 3.5 mm audio jack at the back panel of this Dev. supports both a 4-pole connector for headphones and microphone and headphones with only a 3-pole connector. Headsets with separate connectors for headphones and microphone, though, require an appropriate adapter, if also the microphone should be used.
[2] Dual Display and Digital Audio
The system offers two digital graphics outputs: HDMI 2.0 and HDMI 1.4. It supports either two Full-HD displays at 1080p/60Hz or one UHD display at 2160p/60Hz.
The second display works in clone mode (same content). Only the "DS Creator Duo" App can play different contents on two displays.
If two displays are connected, then the the "DS Creator Duo" App outputs the digital sound only via the HDMI 1.4 port.
[3] WLAN-Antenna
The Dev. is equipped with an internal WLAN antenna. The chassis also features a perforation for the optional installation of an external WLAN antenna. The matching antenna cable with SMA connector is included, the antenna, however, is not.
[4] Google Play Store
The NS03A / NS03E does not Sup. Google Play services which includes Google Play Store.
[5] Power-on Mode
The factory default setting is that the system starts immediately when DC-voltage is applied (non-stop operation). By changing the CN13 jumper setting, it can also be started by power button.
[6] Linux support
Shuttle also plans to provide a Linux operating system image based on Debian 10 on request, starting with the product launch of the NS03 series. Note that only Linux programs developed for this ARM platform are executable. Linux programs for the x86 platform must be ported accordingly.
|
|
| |
|
