Edge SPCEL02P
Robust Industry PC with VESA/DIN-Rail mount and various options with PoE function
The Shuttle Edge PC SPCEL02P is a fanless IPC barebone in a robust 450 ml metal chassis and intended for DIN-Rail or VESA mounting. It is flexible in use and designed for maintenance-free 24/7 operation at ambient temperatures of up to 40°C. Inside there is an Intel Celeron "Elkhart Lake" processor with slots for RAM module, M.2 SSD card and WLAN card. The small housing offers an amazing variety of connections, including dual LAN, COM port and Digital I/O. Power is supplied either via the DC input or via a network cable using the PoE function. This product is targeted at professional applications such as edge computing (IoT gateway), automation, digital signage, control, data logging and video surveillance.
Fanless and silent
Completely fanless, virtually noiseless
Large aluminium heatsink
Passive cooling through convective heat transfer
Ideal for noise-sensitive environments
Fanless means less dust inside the case and thus virtually no maintenance required.
24/7 Nonstop Operation
This Dev. is approved for 24/7 permanent operation.
Chassis
Rugged cassis made of aluminium
Colour: turquoise (blue-green)
Dimensions: 120 x 75 x 51 mm (WxDxH), 460 ml
(Height: ca. 53 mm including rubber feet)
Weight: 720/970 g net (without/with accessories) and 1.2 kg gross
Operation Positions
1) Mounted on a DIN-Rail, e.g. inside equipment racks
2) Vertical, e.g. VESA-mounted behind an appropriate monitor (supports 50x50 and 100x100 mm VESA standard)
3) Standing on its rubber feet like a desktop PC
Operation System
This system comes without operating system.
It is compatible with:
Windows 10/11 (64-bit)
Linux (64-bit)
Download Windows-10/11 drivers here: https://go.shuttle.eu/SPCEL0203
Processor
Intel® Celeron® Prozessor J6412, Quad Core
CPU clock frequency: 2.0 GHz, max. Turbo frequency: 2.6 GHz
Code name: "Elkhart Lake"
10 nm process, FCBGA1493 package (soldered)
CPU cores / Threads: 4 / 4
L2 Cache: 1.5 MB
Thermal Design Power (TDP): 10 W
System-on-Chip processor (SoC) with integrated graphics processor, no additional chipset required
Processor Cooling
Fanless cooling system with passive heat sink, virtually noiseless
Integrated Graphics
The Graphics Processing Unit (GPU) is integrated in the processor.
Intel® UHD Graphics (Intel Gen 10), graphics frequency: 400~800 MHz
Execution Units (EU): 16, Shader: 128
Max. Shared Memory (graphics memory): 8 GB
Supports DirectX 12, Intel Quick Sync Video, Shared Memory
Codec Sup. in Hardware: h265 (8-/10-bit), h264, VP8, VP9, AVC (only decoding: AV1, VC-1)
UEFI Firmware
16 MB Flash ROM with AMI UEFI BIOS Firmware
Based on the Unified Extensible Firmware Interface (UEFI)
Supports Wake-on-LAN (WOL) from S3, S4, S5 ACPI states
Supports boot up from external flash memory cards (USB or SD card)
HW TPM v2.0: Infineon SLB9670VQ2
Memory Support
1x SO-DIMM slots with 260 pins
Supports DDR4-3200 (PC4-25600) SDRAM at 1.2V
Supports one RAM module with max. 32 GB capacity
Supports one unbuffered DIMM module (no ECC)
M.2 expansion slot for SSD cards
M.2-2242/2280 slot with SATA interface
supports SSD cards in M.2-2242 format (length: 42 mm)
only supports SSD cards in M.2-2280 format (length: 80 mm) if no WLAN card is installed
only upports SSD cards with SATA interface (not PCIe/NVMe)
M.2 expansion slot for WLAN cards
M.2-2230-E slot with these Interfaces: PCI-Express X2 and USB 2.0
Supports M.2 cards with a width of 22 mm and a length of 30 mm (type 2230)
Supports WLAN expansion cards (optional Shuttle accessory: WLN-M3)
Note: If a M.2 WLAN module is installed, then the M.2-SSD card is limited to M.2-2242 format with 42 mm length
Note: Also supports an AI accelerator module for AI applications [3]
Dual 2.5G LAN
Dual network with two RJ45 ports with two status LEDs each
Used network chips:
2x Intel i226-V Ethernet Controller (PCIe)
Supports 100 / 1.000 / 2.500 MBit/s operation
Supports WAKE ON LAN (WOL)
Supports network boot by Preboot eXecution Environment (PXE)
Power-over-Ethernet (PoE)
The right RJ45 network port of the Edge-PC supports the PoE function.
Compliant with IEEE 802.3at PoE standard
Power available at the Edge-PC (PD): max. 25.5 W
Power delivered by PSE: max. 30.0 W
Attention: in PoE mode, the maximum permissible power consumption of all connected USB devices is 6 W in total
For further information see [4].

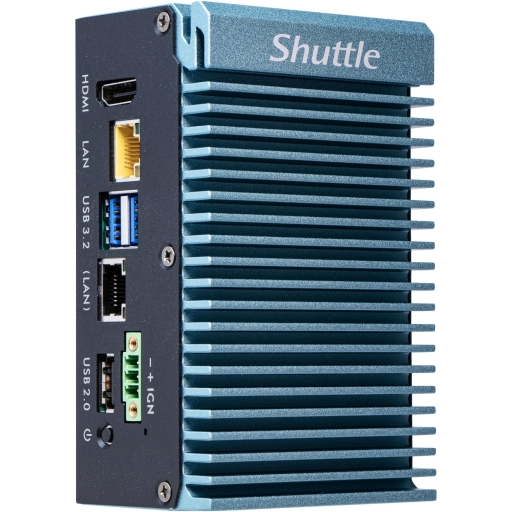

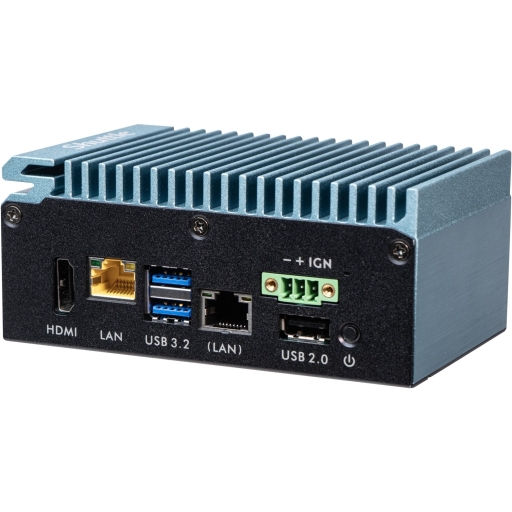

Front Panel Connectors
Power Button
Power LED
HDMI 2.0b digital video and audio output
2x USB 3.2 Gen 2 Type A (max. 10 Gbps)
USB 2.0 Type A
2x 2.5G network port (LAN, RJ45)
The right network port supports Power over Ethernet (PoE)
DC input supports 12-24 V (3-pin Euroblock) [2]

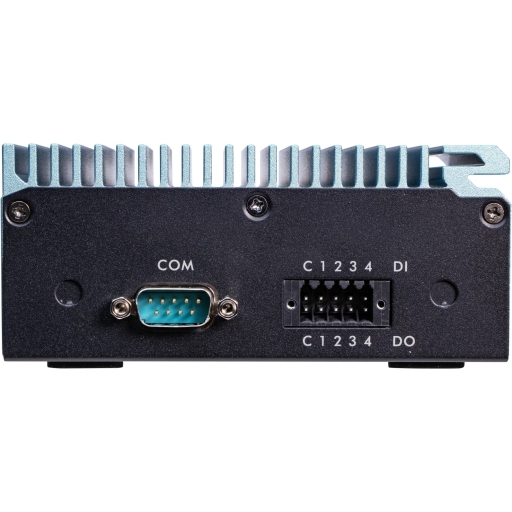

Back Panel Connectors
Serial Port supports RS232/422/485 (D-Sub)
Digital I/O ports (2x5-pin connector with 4 inputs and 4 outputs) [1]
2x perforated 6.5 mm holes for optional WLAN antennas
DC Input
DC-Input connector (3-pin Euroblock) supports a wide voltage range: 12-24V DC.
Required output wattage of the power source: =65 W
The third pin "IGN" acts as input for the car ignition lock which enables delayed on/off switching of the Edge PC.
The supplied adapter cable supports Std. power adapters with 5.5 / 2.5 mm DC plug.
A power adapter is not included in the scope of delivery.
For further information see [2]
Supplied Accessories
Multi-language Usr. guide (EN, DE, FR, ES, JP, RU, SC, TC)
Bracket #1 supports 100 x 100 mm VESA mounting standard
Bracket #2 supports 50 x 50 mm VESA mounting standard
DIN-Rail Clip for 35-mm DIN-Rail mounting (in combination with bracket #2)
Seven screws M3 x 6 mm (5x black and 2x silver)
Two thermal pads for a single-side or double-side RAM module
Note: additional thermal pads for SSD card and WLAN module are already installed
3-pin Phoenix connector for the DC-input port
2x5-pin connector/adapter for the DIO port
DC adapter cable (connects the Phoenix connector to a 2.5 / 5.5 mm coaxial DC plug of a power adapter)
Note: power adapter and Driver-DVD are not included in the scope of delivery.
Download Windows-10/11 drivers here: https://go.shuttle.eu/SPCEL0203
Optional Shuttle Accessories
1) WLN-M3: WLAN kit including Wi-Fi 6 card (M.2-2230), 2x antenna cable (10 cm), 2x external antennas
2) PE65 or PE90: Power Adapter with EU plug (65W / 90W)
3) Coming soon: additional 2.5" bay for a hard disk or SSD with SATA interface
Environmental Specifications
Operating temperature range: 0 40 °C (32 104 °F)
Relative humidity range: 20 80 % (non-condensing)
Warning: Never touch the heatsink during or just after operation, as it can get very hot during normal operation. Be sure to wait for the heatsink to cool off before touching it.
Certification and Compliance
EMI: CE, FCC Class A, VCCI, BSMI, EN 50121-3-2
Safety: CB/IEC 62368-1:2014/2018, cTUVus / UL62368-1:2019, BSMI
Vibration and Shock: EN61373, MIL-STD-810G
This Dev. is classed as a technical information equipment (ITE) in class B and is intended for use in living room and office. The CE-mark approves the conformity by the EU directives:
(1) 2014/30/EU relating to electromagnetic compatibility (EMC)
(2) 2014/35/EU relating to Electrical Equipment designed for use within certain voltage limits (LVD)
(3) 2009/125/EC relating to eco design requirements for energy-related products (ErP)
Footnotes:
[1] The Digital I/O connection (DIO) with 2x5 pins has 4 inputs and 4 outputs for digital signals in addition to the ground (C = Common).
Technical features
- Isolation Voltage: 2500 Vrms
4x Digital Outputs:
- Voltage Rating: 0...30 V (Open collector, pull-up)
- Output Current: max. 30 mA
4x Digital Inputs:
- Logical 0: 0-3 V or close to ground
- Logical 1: 5-30V or open
Instructions and test program with source code: https://go.shuttle.eu/HJbZW
Please contact Shuttle Sup. Hotline for further questions: [email protected]
[2] The DC input connector is designed as a 3-pin Euroblock with pluggable terminal block which uses screw terminals to clamp connecting wires (-/+) coming from the power source. The permissible input voltage range is 12-24 V and the power source should Sup. an output wattage of at least 65 W. You can use the supplied adapter cable to connect a Std. power adapter with a 2.5/5.5 mm DC-plug, such as the Shuttle accessory PE65 or PE90.
The third pin "IGN" acts as input for the car ignition lock which enables delayed on/off switching of the Edge PC.
The switch-on delay (0, 5, 10, 30, 60 sec.) and switch-off delay (0, 1, 3, 5, 10, 30, 60, 90, 120, 240, 360 min.) can be set in the BIOS setup under the “NVR Power Delay” menu item on the “Advanced” tab. You can enter the BIOS setup program by pressing the “Del” key shortly after switching on the PC.
[3] Supports AI accelerator module for AI applications
The M.2-2230 slot of this Edge PC can also be used with an AI accelerator module instead of a WLAN card. The following AI module was successfully tested:
Model: Hailo-8
- Form factor: M.2-2230 Key A+E
- Interface: PCIe Gen-3.0, 2 lanes
- AI compute power: 26 Tera-Operations Per Second (TOPS)
- Typical TDP: 2.5 W
https://hailo.ai/products/ai-accelerators/hailo-8-ai-accelerator/#hailo8-overview
[4] Power-over-Ethernet (PoE)
The Edge-PC SPCEL02P supports a PoE function via the right RJ45/LAN port on the front. This allows you to supply the PC either via the DC input or via the PoE-capable LAN port. With PoE the Edge-PC receives power over the same network cable that transports data, and so does away with the need for a nearby power outlet and an additional power cable. With PoE, the Edge-PC becomes a Powered Dev. (PD) and on the other side of the network cable is the power source (Power Sourcing Equipment = PSE): either a PoE-capable Ethernet switch or a PoE power injector (power output at least 30 W). Please note that the output power of the three USB ports of the Edge PC is limited during PoE operation: the connected USB devices must not consume more than 6 W in total.
|
|
| |
|
