  SCHEDA PRODOTTO
| . |
|
XPC slim DN11H7
Versatile 1.3-litre AI PC with exceptional connectivity
The Shuttle DN11H-series AI-PC is a 1.3-liter barebone PC powered by an Intel® Core™ Ultra series processor, delivering significantly upgraded performance from everyday tasks to business applications. This AI-focused platform integrates CPU, GPU, and a specialized NPU designed to accelerate neural network computations, Offer up to 34 TOPS of total system performance to Sup. complex AI workloads. The DN11H stands out with its exceptional connectivity, including four 2.5G LAN ports for high-bandwidth networking, eight high-speed USB-C/USB-A ports, four ports for UHD-displays and three M.2-2280 slots for SSD cards, making it ideal for data-intensive environments. The DN11H excels in diverse modern business and industrial scenarios, such as network video recorders, image processing and data visualization, virtual reality simulations, multimedia production, industrial process control, and more.
Chassis
Slim PC with black chassis made of metal
Dimensions: 190 x 165 x 43 mm (LWH) = 1.35-litre
Weight: 1.23 kg net and 2.46 kg gross
Two holes for Kensington Locks and numerous
threaded holes (M3) on both sides of the chassis
Includes VESA mount for 75x75 and 100x100 mm standard
Operation System
This barebone system comes without operating system.
It is compatible with:
Windows 11, 64-bit
Linux, 64-bit
Windows 11 driver download: go.shuttle.eu/DN11H
Processor
Model: Intel® Core™ Ultra 7 Processor 155H
Code name "Meteor Lake-H" (Intel Core Ultra processors Series 1)
System-on-a-chip architecture (SoC) with integrated memory and graphics controller
Lithography: Intel 4 process (7 nm) and TSMC N5/N6
Performance-cores (P-Cores): 6 cores, 12 threads, clock rate: 1.4 4.8 GHz
Efficient-cores (E-Cores): 8 cores, clock rate: 0.9 3.8 GHz
Low Power Efficient-cores: 2 cores, clock rate: 0.7 2.5 GHz
Total Threads: 22
Smart-Cache (L3): 24 MB
Base Power (TDP): 28 W
Configurable Power (cTDP): 20 W, 28 W or 54 W [1]
Neural Processing Unit (NPU): Intel® AI Boost
NPU AI performance: 11.5 TOPS (NPU+CPU+iGPU: 34 TOPS) [2]
Maximum operating temperature: 110 °C
FCBGA2049 package directly soldered onto the mainboard
Cooling System
Heat-pipe cooling system with 80-mm fan
Supports temperature-controlled RPM fan speed [1]
Integrated Graphics supports Quad 4K
Intel® Arc™ graphics engine
Xe-cores: 8 (128 EUs)
Dynamic graphics clock rate: max. 2.25 GHz
Supports DirectX 12.2, OpenGL 4.6, OpenCL 3.0
This PC supports up to four independent screens with up to 4K/60Hz
(Ultra HD 3840×2160 resolution at 60 frames per second)
Graphics ports:
2x HDMI 2.1
2x DP 1.4a
Allows flexible multi-display arrangements e.g. 1x4 horizontal or 4x1 vertical setups
with the help of the IGCC SW application (Intel® Graphics Command Center).
UEFI Firmware (BIOS)
AMI UEFI Firmware (BIOS)
Supports various power-on functions
Power on after power fail
Wake-on-LAN (WOL)
Power on by real time clock (RTC)
TPM Function
Supports Firmware-TPM (fTPM) v2.0
The TPM function can be switched on/off in the "Advanced" BIOS setup.
Memory support
2x SO-DIMM slot with 262 pins
Supports DDR5-5600 (PC5-44800) SDRAM at 1.1 V
Supports Dual Channel mode
Supports a maximum of 48 GB per DIMM,
maximum total size: 96 GB
Supports two unbuffered DIMM modules (no ECC or registered)
Three M.2-2280 Slots for SSD cards
Three slots for SSD cards in M.2-2280 form factor (length: 80 mm)
Supports M.2 cards with M key or B+M key
The following standards are supported:
Slot Position PCIe Gen4 x4 / NVMe SATA Gen3 WWN04 *)
1 Front Yes Yes --
2 Front/Side Yes Yes --
3 Rear Yes -- Yes
Supports NVMe Raid Lvl. 0, 1 and 5
Supports SATA Raid Lvl. 0 and 1
*) WWN04 is an optional accessory to provide 4G/5G functionality
Audio
Audio Realtek® ALC888S High-Definition Audio
Two analog audio connectors (3.5 mm) on the front panel:
1) 2-channel line-out (head-phones)
2) microphone input
Digital multi-channel audio output: by HDMI and DisplayPort
Quad 2.5G LAN
Four RJ45 ports
Ethernet Controller: Intel i226LM
Supports 10 / 100 / 1.000 / 2.500 MBit/s operation (max. 2.5 Gbps)
Supports WAKE ON LAN (WOL)
Supports network boot by Preboot eXecution Environment (PXE)
M.2-2230E slot for WLAN cards
M.2-2230E slot supports WLAN expansion cards
Interfaces: PCI-Express X1, USB 2.0, CNVi
Supports M.2 cards with a width of 22 mm and a length of 30 mm (type 2230)
Supports WLAN expansion cards (optional Shuttle accessory: e.g. WLN-M1)
The chassis has four perforations for optional external antennas

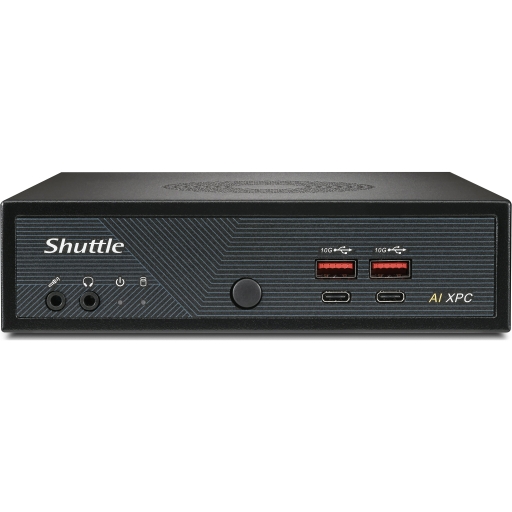

Front Panel connectors
Microphone input
Audio Line-out (headphones)
2x USB 3.2 Gen 2 Type A (red), max. 10 Gbps, connected with hub
2x USB 3.2 Gen 2x2 Type C, max. 20 Gbps, supports 3A Power Delivery (PD)
Power button
Power LED (blue)
HDD LED (yellow)
Back Panel connectors
2x HDMI 2.1
2x DP 1.4
4x USB 3.2 Gen 2 Type A (red), max. 10 Gbps, connected with hub
4x 2.5G Ethernet LAN (RJ45, Intel i226LM)
1x DC-Eingang für externes Netzteil (5,5 / 2,5 mm)
1x 4-pin connector (2.54 mm pitch) supports:
external power on button
Clear CMOS function
+5V DC voltage for external components
2x perforation for optional externe antennas (for WLAN or 4G/5G)
Openings on the side
2x perforation for optional externe antennas (for WLAN or 4G/5G)
2x hole for Kensington Lock
Onboard Jumper
Jumper JP1 for power-on-after-power-fail (hardware solution) [3]
Power Adapter
External 120 W power adapter (fanless)
Input: 100~240 V AC, 50-60 Hz, max. 1.8 A
Output: 19.0 V DC, max. 6.32 A, max. 120 W
DC cable ca. 170 cm with coaxial connector: 5.5 / 2.5 mm (outer/inner diameter)
The DC-input of the computer supports 19V ± 5%.
AC cable, ca. 170 cm, 3-pin Micky MM C6 and Schuko earthed safety plug
Supplied Accessories
Multi-language Quick Installation Guide
VESA mount for 75/100 mm Std. (two metal brackets)
Four screws M3 x 5 mm (screws together VESA mount and PC)
Four screws M4 x 10 mm (to affix VESA mount on the PC)
Four screws M3 x 5 mm (silver colour, to mount two M.2 cards)
Power adapter 120 W with AC power cord (with earthing contact)
DVD with Windows 11 drivers (driver download: go.shuttle.eu/DN11H)
Optional Accessories
CXP01: adapter cable for external power button
PRM01: 2U rack mount front plate for one or two Shuttle XPC slim
DIR01: mounting kit for 35 mm DIN-Rail
WLN-M1: WLAN kit with Intel AX200 WLAN card (supports Wi-Fi 6, BT 5.2) and 2 external antennas
WWN04: 4G/5G kit with M.2 adapter card and 4 external antennas enables the use of an optional 4G/5G card in M.2 format and a nano SIM card
Environmental Spec
Operating temperature range: 0~50 °C
Relative humidity range: 10~90% (non-condensing)
Conformity/Certifications
EMI: CE, FCC, BSMI
Safety: CB IEC62368, cTUVus (UL 62368), BSMI
Other: RoHS, Energy Star, ErP
This Dev. is classed as a technical information equipment (ITE) in class B and is intended for use in living room and office. The CE-mark approves the conformity by the EU directives:
(1) 2004/108/EC relating to electromagnetic compatibility (EMC),
(2) 2006/95/EC relating to Electrical Equipment designed for use within certain voltage limits (LVD),
(3) 2009/125/EC relating to ecodesign requirements for energy-related products (ErP)
|
|
| |
|
