  SCHEDA PRODOTTO
| . |
|
Edge SPCEL12
Robust 0.5L Industry PC supports three displays and optional 4G
The Shuttle Edge PC SPCEL12 is a fanless Industrial PC barebone in a robust metal chassis and intended for VESA mounting. It is flexible in use and de-signed for maintenance-free 24/7 operation at ambient temperatures of up to 40°C. Inside there is an Intel Celeron "Elkhart Lake" processor with slots for RAM module, M.2 SSD card and optional WLAN or 4G card. The small housing offers an amazing variety of connections, including three graphics ports, dual LAN, Audio, and slots for Micro SD and Nano SIM. This product is targeted at professional applications such as digital signage (media player), edge computing (IoT gateway), automation, control, data logging and video surveillance.
Fanless and silent
Completely fanless, virtually noiseless
Large aluminium heatsink
Passive cooling through convective heat transfer
Ideal for noise-sensitive environments
Fanless means less dust inside the case and thus virtually no maintenance required.
24/7 Nonstop Operation
This Dev. is approved for 24/7 permanent operation.
Chassis
Rugged cassis made of aluminium
Colour: purple
Dimensions: 120 x 75 x 51 mm (WxDxH), 460 ml
(Height: ca. 53 mm including rubber feet)
Weight: 730/1250 g net (without/with accessories) and 1.5 kg gross
Operation Positions
1) VESA-mounted behind an appropriate monitor (supports 100x100 mm VESA standard)
2) Standing on its rubber feet like a desktop PC
Operation System
This system comes without operating system.
It is compatible with:
Windows 10/11 (64-bit)
Linux (64-bit)
Download Windows-10/11 drivers here: https://go.shuttle.eu/SPCEL12
Processor
Intel® Celeron® Prozessor J6412, Quad Core
CPU clock frequency: 2.0 GHz, max. Turbo frequency: 2.6 GHz
Code name: "Elkhart Lake"
10 nm process, FCBGA1493 package (soldered)
CPU cores / Threads: 4 / 4
L2 Cache: 1.5 MB
Thermal Design Power (TDP): 10 W
System-on-Chip processor (SoC) with integrated graphics processor, no additional chipset required
Processor Cooling
Fanless cooling system with passive heat sink, virtually noiseless
Integrated Graphics
The Graphics Processing Unit (GPU) is integrated in the processor.
Intel® UHD Graphics (Intel Gen 10), graphics frequency: 400~800 MHz
Execution Units (EU): 16, Shader: 128
Max. Shared Memory (graphics memory): 8 GB
Supports DirectX 12, Intel Quick Sync Video, Shared Memory
Codec Sup. in Hardware: h265 (8-/10-bit), h264, VP8, VP9, AVC (only decoding: AV1, VC-1)
The PC features three independent video outputs:
2x HDMI v2.0b
1x DP v1.4
All ports Sup. displays with 4K Ultra HD resolution at 3840 x 2160 with 60 Hz refresh rate and multi-channel digital audio over the same cable.
UEFI Firmware
16 MB Flash ROM with AMI UEFI BIOS Firmware
Based on the Unified Extensible Firmware Interface (UEFI)
Supports Wake-on-LAN (WOL) from S3, S4, S5 ACPI states
Supports boot up from external flash memory cards (USB or SD card)
HW TPM v2.0: Infineon SLB9670VQ2
Memory Support
1x SO-DIMM slots with 260 pins
Supports DDR4-3200 (PC4-25600) SDRAM at 1.2V
Supports one RAM module with max. 32 GB capacity
Supports one unbuffered DIMM module (no ECC)
M.2 expansion slot for SSD cards
M.2-2242/2280 slot with SATA interface
supports SSD cards in M.2-2242 format (length: 42 mm)
only supports SSD cards in M.2-2280 format (length: 80 mm) if no WLAN or 4G card is installed
only upports SSD cards with SATA interface (not PCIe/NVMe)
M.2 expansion slots for WLAN or 4G
The Edge PC can be equipped with either a WLAN or 4G function. Two slots are available for this purpose, which are stacked one above the other:
1) M.2-2230 E-Key slot for WLAN cards in 22 x 30 mm format (W x L)
2) M.2-3042 B-Key slot for 4G cards in 30 x 42 mm format (W x L)
Notes:
1) For thermal reasons, only one slot may be populated at a time. There are also only two perforations (holes) for external antennas.
2) The antenna cables should ideally be 10 cm long. Shuttle offer the optional WLAN accessory kit "WLN-M3" (including Wi-Fi 6 WLAN card and two antennas with cables)
3) If a WLAN or 4G card is installed, the M.2 SSD card is limited to the M.2-2242 format with a length of 42 mm.
4) If a 4G card is installed, this is used in combination with the nano SIM slot located on the back of the Edge PC.
5) The M.2-2230 slot also supports an AI accelerator module for AI applications [1]
Dual 2.5G LAN
Dual network with two RJ45 ports with two status LEDs each
Used network chips:
2x Intel i226-V Ethernet Controller (PCIe)
Supports 100 / 1.000 / 2.500 MBit/s operation
Supports WAKE ON LAN (WOL)
Supports network boot by Preboot eXecution Environment (PXE)
Audio
Audio Realtek® ALC888-VD High-Definition Audio
Two analog audio connectors (3.5 mm) on the back panel:
1) 2-channel line-out (head-phones)
2) microphone input
Digital multi-channel audio output: by HDMI and DisplayPort

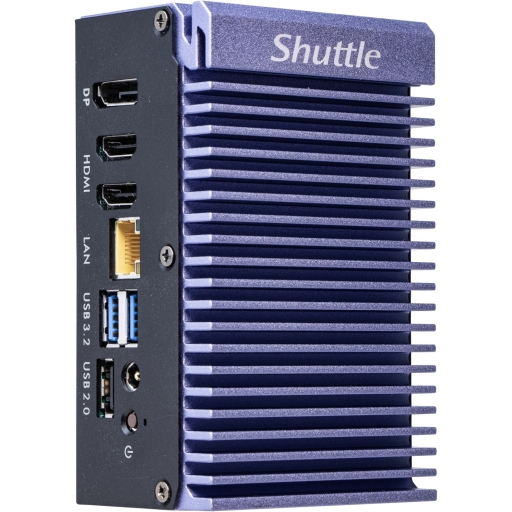

Front Panel Connectors
Power Button
Power LED
2x HDMI 2.0b
1x DP 1.4
2x USB 3.2 Gen 2 Type A (max. 10 Gbps)
USB 2.0 Type A
2.5G network port (LAN, RJ45)
DC input for 2.5/5.5 mm barrel plug supports 12-20 V voltage range
Back Panel Connectors
2.5G network port (LAN, RJ45)
Microphone input
Audio Line-out (headphones)
Micro SD card reader slot
Slot for Nano SIM card (if a 4G card and antennas have been installed)
2x perforated 6.5 mm holes for optional WLAN or 4G antennas
DC Input
The DC input supports Std. power adapters with 5.5 / 2.5 mm barrel plugs (outer / inner diameter) and supports a wide voltage range from 12 to 20 V. Required output wattage of the power source: =65 W.
Power Adapter
External 65 W power adapter (fanless)
Input: 100~240 V AC, 50/60 Hz, max. 1.6 A
Output: 19 V DC, 3.42 A, max. 65 W
DC Connector: 5.5/2.5 mm (outer/inner diameter)
AC mains cable: 3 pins, ca. 1.7 m length, with C5/C6 coupler (called "Mickey Mouse" or "Clover-leaf") for the power adapter and CEE-7/7 plug with earth-contact (type E+F) for the power outlet
Supplied Accessories
Multi-language Usr. guide (EN, DE, FR, ES, JP, RU, SC, TC)
VESA Mount supports 100 x 100 mm standard
Three black screws M3 x 6 mm for the VESA mount
Two thermal pads for a single-side or double-side RAM module
Note: additional thermal pads are already installed
External 65 W power adapter with power cord
Note: a Driver-DVD is not included in the scope of delivery.
Download Windows-10/11 drivers here: https://go.shuttle.eu/SPCEL12
Optional Shuttle Accessories
1) WLN-M3: WLAN kit including Wi-Fi 6 card (M.2-2230), 2x antenna cable (10 cm), 2x external antennas
2) CLT02: Antenna kit for 4G expansion consisting of 2 antennas and 2 antenna cables 10cm (not included: M.2-3042 4G/LTE card and nano SIM card)
3) MDR02: DIN-Rail clip for mounting the Edge-PC SPCEL12 on a DIN-Rail, e.g. in control cabinets.
4) Coming soon: additional 2.5" bay for a hard disk or SSD with SATA interface
Environmental Specifications
Operating temperature range: 0 40 °C (32 104 °F)
Relative humidity range: 20 80 % (non-condensing)
Warning: Never touch the heatsink during or just after operation, as it can get very hot during normal operation. Be sure to wait for the heatsink to cool off before touching it.
Certification and Compliance
EMI: CE, FCC Class A, VCCI, BSMI, EN 50121-3-2
Safety: CB/IEC 62368-1:2014/2018, cTUVus / UL62368-1:2019, BSMI
Vibration and Shock: EN61373, MIL-STD-810G
This Dev. is classed as a technical information equipment (ITE) in class B and is intended for use in living room and office. The CE-mark approves the conformity by the EU directives:
(1) 2014/30/EU relating to electromagnetic compatibility (EMC)
(2) 2014/35/EU relating to Electrical Equipment designed for use within certain voltage limits (LVD)
(3) 2009/125/EC relating to eco design requirements for energy-related products (ErP)
Footnotes:
[1] Supports AI accelerator module for AI applications
The M.2-2230 slot of this Edge PC can also be used with an AI accelerator module instead of a WLAN card. The following AI module was successfully tested:
Model: Hailo-8
- Form factor: M.2-2230 Key A+E
- Interface: PCIe Gen-3.0, 2 lanes
- AI compute power: 26 Tera-Operations Per Second (TOPS)
- Typical TDP: 2.5 W
https://hailo.ai/products/ai-accelerators/hailo-8-ai-accelerator/#hailo8-overview
|
|
| |
|
