Box-PC BPCAL02-i3
Fanless Box-PC with Intel Core processor in a robust chassis
Shuttle's BPCAL02 fanless Box-PC Series is fueled by Intels 12th Generation (Alder Lake) Core processors in a ruggedized box design for high durability. It comes with modular I/O expansion capabilities and various mounting options. With Adv. technology and highly flexible design, this industrial PC offers a reliable solution for a wide range of customized requirements in industrial environments.
Fanless and Silent
Equipped with passive cooling, no fan noise at all
Perfect to be used in noise-sensitive environments
Fanless, dust-free and thus virtually maintenance-free
24/7 Nonstop Operation
This Dev. is approved for 24/7 permanent operation.
Requirement: Free circulation of air amongst the PC must be guaranteed.

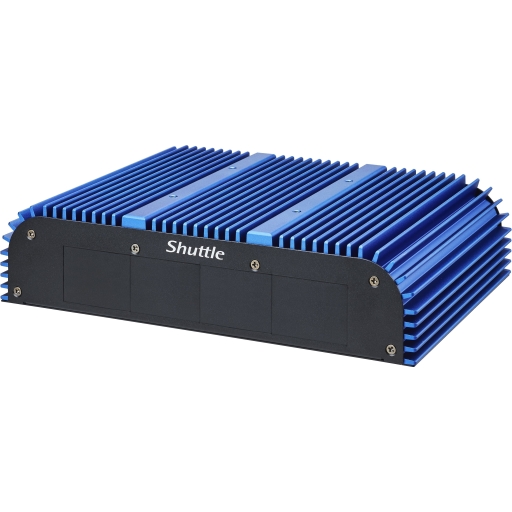

Chassis
Durable and rugged chassis made of aluminium and steel.
Passive cooling system with specially designed fins to maximize heat dissipation.
Dimensions: 16,9 x 24,5 x 5,7 cm (LWH) = approx. 2,7 litres
Weight: 2.85 kg net (Barebone without RAM/SSD and optional expansions)
IP-rating: IP30
Operating Position/Mounting
1) Desktop: The unit can be placed horizontally to stand on its feet.
2) VESA Mount: The unit can be affixed to a 75 mm x 75 mm VESA bracket. For this purpose, four M4x6L screws are required to be screwed into the chassis from the top.
3) Side Brackets (MRS01 = 2 brackets): The unit can be mounted using two optional 256 mm x 100 mm ear-mount brackets. For this purpose, four M3x6L screws are required to be screwed into the chassis from the bottom.
4) DIN-Rail Clips (2x MDR01): Mounted on a Std. 35 mm DIN-Rail, e.g. inside equipment racks. This requires two Std. DIN rail clips, each of which is attached to the underside of the BoxPC with two M3 screws (hole spacing: 47.5 mm).
Notes: VESA bracket, Ear-Mount and DIN-Rail clips are not included.
Vertical mounting is permitted in any orientation.
Operating System
This barebone system comes without operating system.
It is compatible with Windows 10/11 (64-bit) and Linux (64-bit).
Processor
Model: Intel Core i3-1215U (ULV)
12th Generation Intel Core, code name "Alder Lake-U"
System-on-a-chip architecture (SoC) with integrated memory and graphics controller
FCBGA1744 package directly soldered onto the mainboard
Processor cores: total 6
Performance Cores: 2 P-Cores (4 Threads) at 1.2 / 4.4 GHz basis/turbo clock
Efficient Cores: 4 E-Cores at 0.9 / 3.3 GHz basis/turbo clock
Smart Cache: 10 MB
TDP wattage: 15 W maximum
Manufacturing process: Intel 7 (10 nm)
Maximum Tjunction Temperature: 100 °C
Integrated Graphics
Intel® UHD Graphics with 64 Execution Units (EU)
Graphics Max Dynamic Frequency: 1.10 GHz
This PC supports up to four independent screens
with up to 4K/60Hz (Ultra HD 3840×2160 resolution).
Display
Connector outside Connector onboard Note
No. 1 HDMI 2.0b (on the back panel) -- built-in (fixed)
No. 2 optional: HDMI, DP, DVI-I, VGA 21-Pin DDI onboard
No. 3 optional: HDMI, DP, DVI-I, VGA 21-Pin DDI onboard
No. 4 optional: DP, VGA 31-Pin eDP onboard no PnP *)
*) Note: the fourth connector does not Sup. Plug-and-Play
The following optional accessories are available for additional graphics connections:
1) HDMI 1.4 (DHD01)
2) HDMI 2.0b (DHD11)
3) DP 1.2 (DDP01)
4) DVI-I (DDV01)
5) VGA / D-Sub (DVG01)
UEFI BIOS
Supports resume after power failure
Supports Wake on LAN (WOL)
Supports Power on by RTC Alarm
Supports boot from M.2 SSD cards and USB devices
AMI BIOS in 64 MB EEPROM with SPI interface
Supports HW monitoring and Watchdog function
Supports Unified Extensible Firmware Interface (UEFI)
Supports Intel vPro Essential
TPM Module
H/W-TPM V2.0: HW Trusted Platform Module V2.0 (Infineon SLB9670VQ2)
Power Adapter
Power
Adapter
Operating
Temperature
Output
Wattage
AC Input
DC Output
AC Cable
Supplied
model
0 to +40°C
Max. 90 W
100-240V, 50/60Hz
19V, max. 4.74A
Schuko to
IEC 60320 C5
PA1501
(optional [1])
-20 to +60°C
Max. 150 W
(95W at 60°C)
90-260V, 50/60Hz
19V, max. 7.89A
Schuko to
IEC 60320 C13
DC Connector: 5.5/2.5 mm (outer/inner diameter)
AC mains cable: 3 pins, ca. 1.8 m length, with C5/C6 coupler (called "Mickey Mouse" or "Clover-leaf") for the power adapter and CEE-7/7 plug with earth-contact (type E+F) for the power outlet
Note: The DC input voltage range can optionally be extended to Sup. 9-36 V (Accessory VOL01).
Memory Sup. [1]
2x SO-DIMM slot with 262 pins
Supports DDR5-4800 (PC5-38400) SDRAM at 1.1 V
Supports Dual Channel mode
Supports a maximum of 32 GB per DIMM,
maximum total size: 64 GB
M.2 Slot for SSDs [1]
The M.2 2280 M slot provides the following interfaces:
PCI-Express Gen. 4.0 X4
SATA v3.0 (max. 6 Gbps)
It supports M.2 cards with a width of 22 mm
and a length of 42 or 80 mm (type 2242, 2280).
Supports M.2 SATA SSDs (with B+M key) and M.2 PCIe NVMe SSDs (with M key) with auto detect
Audio
Audio Realtek® ALC888S High-Definition Audio
Two analog audio connectors (3.5 mm) on the back panel:
1) 2 channel line out (headphones)
2) microphone input
Digital multi-channel audio output: via HDMI and optional DisplayPort
Dual 2.5G LAN
Dual network with RJ45 ports and Intel i226V network chips
Supports 10 / 100 / 1000 / 2500 MBit/s operation
Supports WAKE ON LAN (WOL)
Supports network boot by Preboot eXecution Environment (PXE)

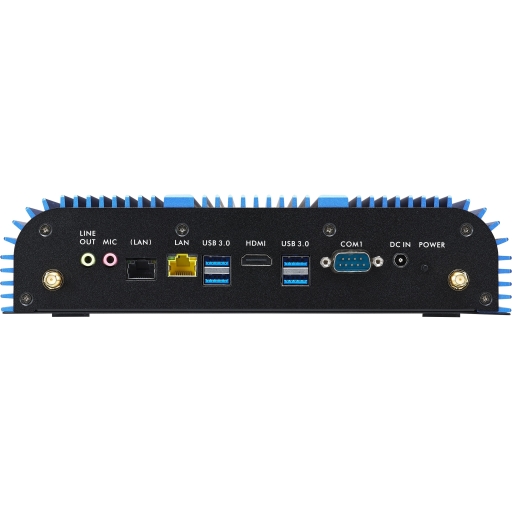

Back Panel connectors
HDMI 2.0b
4x USB 3.2 Gen 2 Type A (max. 10 Gbps)
2x Intel 2.5G LAN (RJ45, i226V)
Serial COM port (RS232)
Microphone input (3.5 mm)
Audio Line-out / Headphones (3.5 mm)
DC-input connector for external power adapter (2.5 / 5.5 mm)

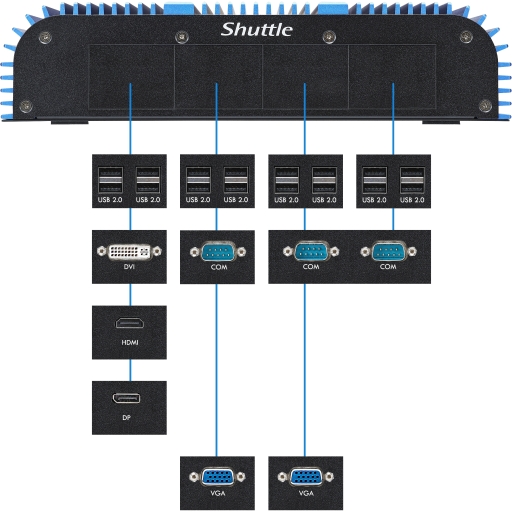

Optional Front Panel connectors
The front panel is subdivided into four sections to Sup. optional expansion kits with daughter boards in order to add I/O ports. Caution: Only suitably trained persons may open the barebone and install optional components!
1) up to three additional graphics ports:
HDMI 2.0b (DHD11)
HDMI 1.4 (DHD01)
DP 1.2 (DDP01)
DVI-I (DDV01)
D-Sub/VGA (DVG01)
Attention: only two additional HDMI and DVI ports are possible
2) one COM port RS232 (CRS01)
3) two COM ports RS232/RS422/RS485 occupies two sections (CSD01)
4) 4x USB 2.0 can be installed twice (Note: USB 2.0 ports allow up to 500mA/2.5W power output, but if only low power devices like mouse/keyboard are connected, then up to 4 USB kits can be used) (USB01)
5) up to four Digital I/O expansion kits, each with 4x Input and 4x Output (DIO11) [2]
6) Input for car ignition lock enables delayed on/off switching of the BoxPC (DIO01)
7) LTE/4G kit with two external Antennas (LTE01). Not included: LTE card in M.2-3042 format (e.g. Huawei ME906S, Sierra EM7455, Quectel EM06E) and Nano-SIM card.
8) Terminal screws to connect a cable for an external Power Button (PWR01)
9) Terminal screws to connect a cable for an external DC power source (PDC01)
10) Two or four additional 2.5G LAN ports with Intel 226V chipset (LAN22/LAN42)
Further optional accessories
1) Wide range DC-input 9~36 V, instead of only 19 V (VOL01)
2) Ear-mount brackets, mounting dimensions: 256 mm x 100 mm (MRS01)
3) DIN-Rail clip (special clip has holes without thread) (2x MDR01)
4) WLAN module with two external antennas (WMAX2001+CWL01)
Environmental Specifications
Option
Operating Temperature
Relative humidity
Std. 0 to +40 °C 20-80 % non-condensing
Industrial [1] -20 to +60 °C 20-80 % non-condensing
Notice the footnote [1]
Conformity e Certifications
EMI: CE, FCC Class A, VCCI, RCM, BSMI
Safety: CB, cTUVus, BSMI
Other: RoHS, ErP, CEC
This Dev. is classed as a technical information equipment (ITE) in Class A, Class A is for product used in and industrial areas. The CE-mark approves the conformity by the EU directives:
(1) 2014/30/EU relating to electromagnetic compatibility (EMC),
(2) 2014/35/EU relating to Electrical Equipment designed for use within certain voltage limits (LVD),
(3) 2009/125/EC relating to eco design requirements for energy-related products (ErP)
[1] for safe operation in the extended operating temperature range (-20 to +60°C), the optional 150W power supply (PA1501) is required and industrial-grade RAM/SSD components with an operating temperature range of -40 ... +85 °C are also required
[2] The DIO expansion kit (DIO11) comes with the appropriate plug connector included. The digital inputs recognize "Low" at 0-3 Volt and "High" at 5-30 Volt (or open). The digital outputs can handle 0-30V (open collector) with up to 30 mA current.
|
|
| |
|
